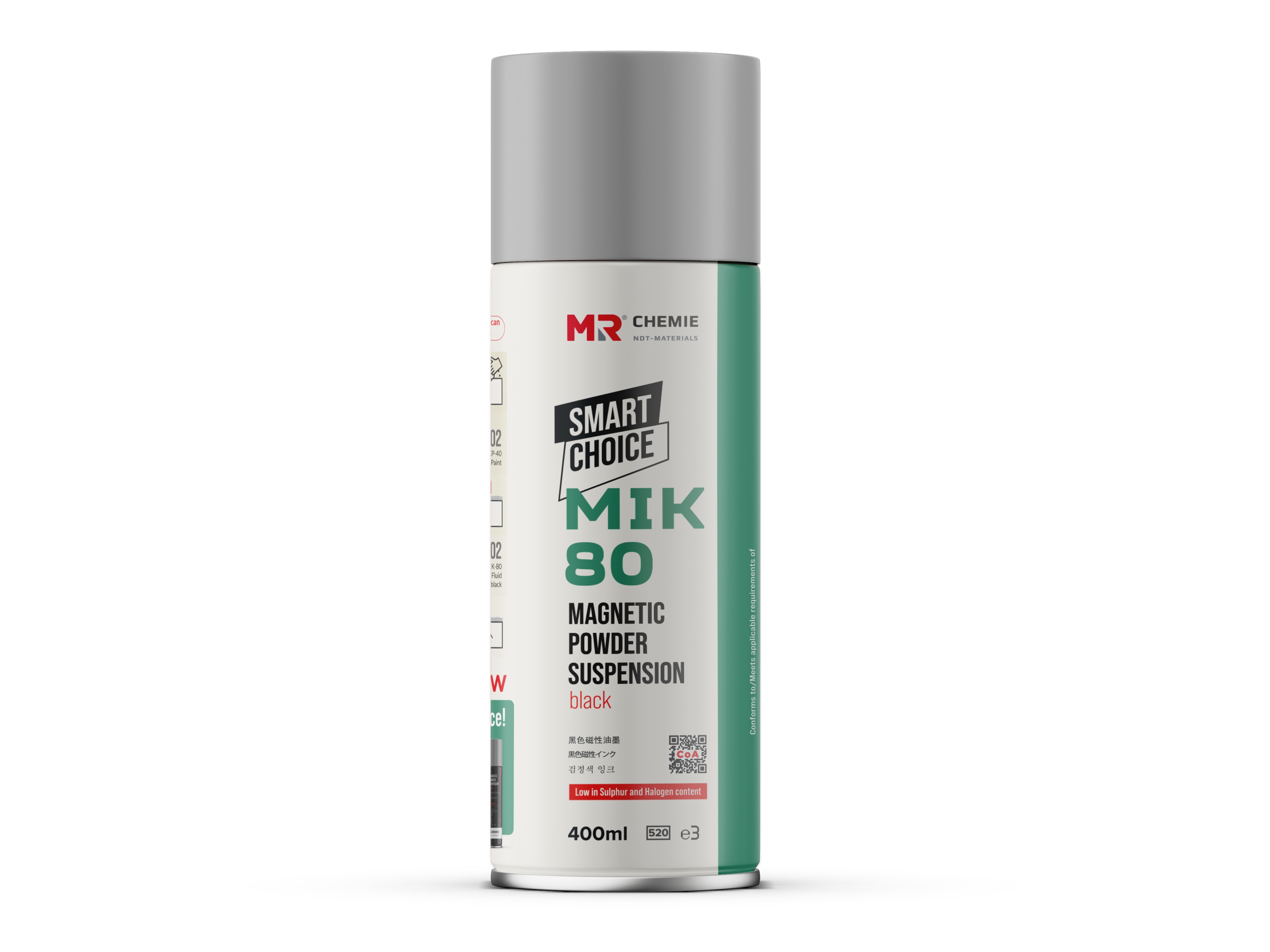

Smart Choice MIK80 Magnetic Powder Suspension – Black
Smart Choice MIK80Magnetic Powder Suspension – Black
MR® SmartChoice MIK80 is an exclusive edition by MR® Chemie for sale in select channels only. SmartChoice MIK80 is a highly sensitive, oil-based magnetic particle suspension aerosol designed to reveal dark, clear, and strong indications of cracks during colored magnetic particle inspection. It effectively highlights defects on challenging surfaces with no background interference, ensuring enhanced detection of flaws.
| SKU | Pack Size | Case Size |
|---|---|---|
| 2511-0126 | Aerosol 400ml | 10 |
- Black Magnetic Powder Suspension for
- Magnetic Particle Testing according to EN ISO 9934:1
- Low in Sulphur & Halogen Content
- High sensitivity, suitable for fine cracks
- Average particle size 4 μm
- Settlement volume (1h) 1,20 – 2,40 ml / 100ml
- Excellent wetting ability optimized distribution of propellant during spraying from aerosol can
Additional information
| Properties | Appearance – black oily liquid Chemical Composition – mixture of oil; additives and black magnetic powder Basis – hydrocarbon Odour – characteristic |
| Approvals | EN ISO 9934-2 ASTM E709 ASTM E1444/1444M ASME Code V; Art. 7 ASME B & PV Code; Sec V |
| Recommended Usage | NDT Method – Magnetic Particle Testing Area Coverage ~ 6 sq m (400ml nett Aerosol can) Storage: +5°C - +45°C Application: -10°C to +50°C |
| Reference Test Blocks | Reference test block 1 & 2 ASTM test block |
Family Testing
GHS Category
| Bulk | Aerosol |
|---|---|
  |
FAQs
Penetrant testing, also known as dye penetrant inspection, is a non-destructive testing (NDT) technique used to detect surface-breaking defects such as cracks, porosity, laps, and seams on the surface of solid materials.
MPI (Magnetic Particle Inspection) testing is a non-destructive testing method used to detect surface and slightly subsurface defects in ferromagnetic materials such as iron, nickel, and cobalt. It is commonly used in industries such as aerospace, automotive, and oil and gas.
Yes, there are different versions of black ink available depending on the form and suspension liquid.
MIK80 comes in various versions (Version A, B, C, D, S) depending on the sediment levels. The standard MIK80 (Version A) comes with a sediment of 1.2-2.4 ml/100ml (1 h) according to the ASME standard.
The black ink is typically applied to the surface being inspected by either spraying or brushing it on.
Yes, the black ink used in MPI testing is generally safe to use. However, it is important to follow the manufacturer's instructions and safety precautions when handling and using the ink.
Yes, other colors such as red, blue, and green can be used in MPI testing. However, black ink is the most commonly used color because it provides the highest contrast and is therefore the easiest to interpret.
MIK80 is designed to offer excellent particle mobility reducing the background even when oversprayed.
SWT is a proprietary technology used in preparing MIK80 which enhances the particle mobility, reduces the background, super wets the carrier media for quick indications and increases particle build-up, thereby increasing the sensitivity significantly.
