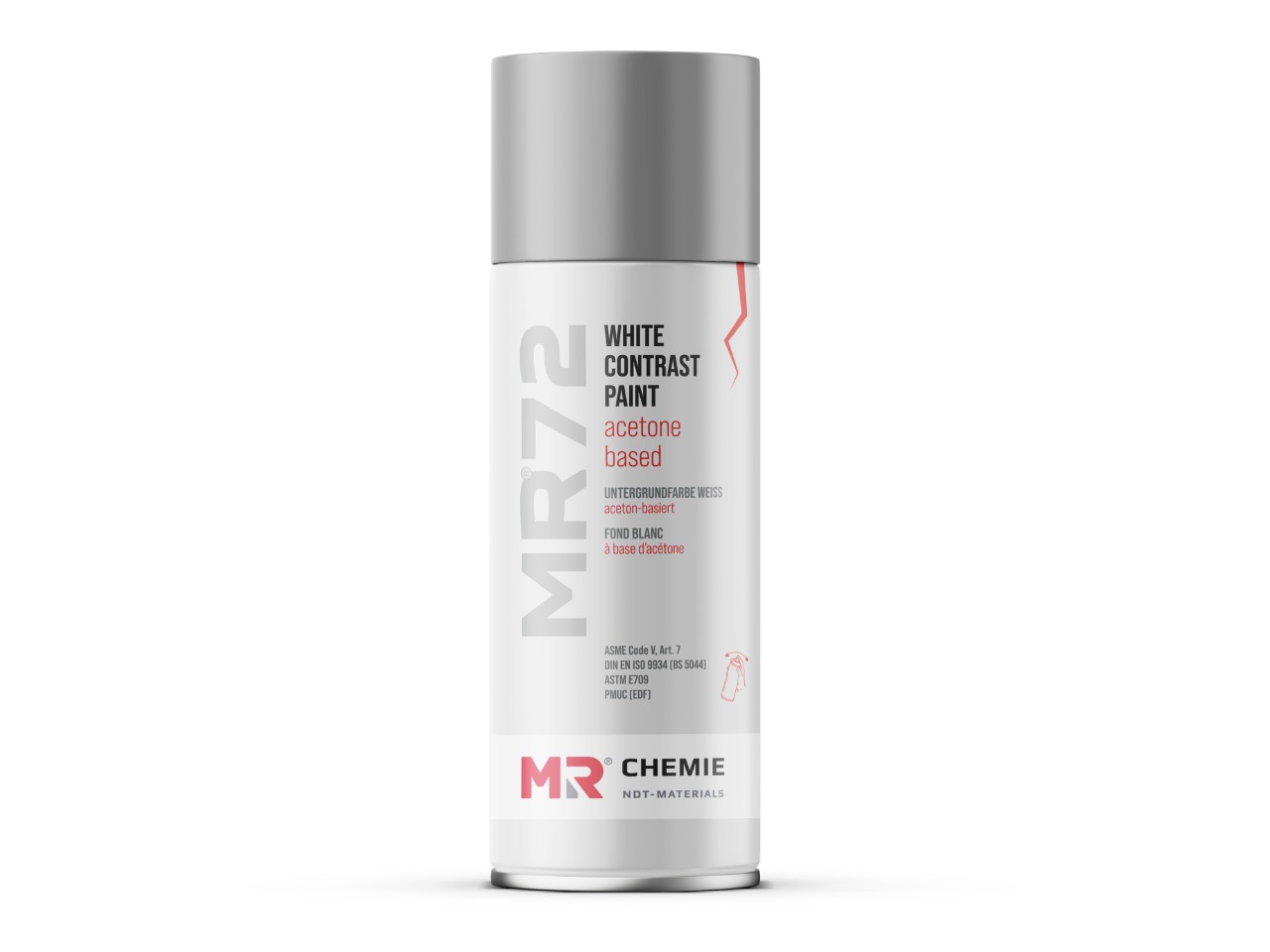

MR®72 White Contrast Paint

MR®72White Contrast Paint

MR®72 is a specially formulated quick drying coating material which serves to lighten the test surface when performing non-fluorescent magnetic particle inspection by forming a smooth white film to improve probability of detection and sensitivity. Version of MR72 may vary in select countries.

SKUPack SizeCase Size
2511-0015Aerosol 400ml10
2511-0190Bulk 1L6
2511-0189Bulk 5L–
Computer man Computer man Computer man
  •   Bright white coating
  •   Free of aromatics, solvent-based
  •   Toluene free
  •   Benzene free
  •   Low odour
  •   Instant touch dry
  •   Easy to apply and easy to clean* #
  •   Non toxic
  •   Strong adhesion on all metal surfaces
  •   Available in multiple variants depending on user requirements
  •   *Cleans effectively using MR71 or MR79. # MR72 EZ cleans by simple wiping.

Additional information

PropertiesAppearance – white volatile liquid
Chemical Composition – mixture of solvents & white pigments
Basis – solvents
Odour – characteristic
ApprovalsASME Code V; Art. 7
DIN EN ISO 9934 (BS 5044)
ASTM E709
PMUC (EDF)
Recommended UsageNDT Method – Magnetic Particle Testing
Area Coverage ~ 6 sq m (400ml nett Aerosol can) ; ~ 19 sq m (1 L)
Usage Temperature – 41°F to 131°F / +5 °C to +185 °C **
Storage Temperature – 41°F to 113°F / +5 °C to +45 °C
** EZ or HD variant

How it Works

In Magnetic Particle Inspection (MPI), contrast paint is a type of paint that is used to provide a contrasting background to the magnetic particles that are used to detect surface and near-surface defects in ferromagnetic materials. The white contrast paint is applied to the surface of the test piece to enhance the visibility of the magnetic particle indications.

The white contrast paint works by providing a contrasting background colour to the dark magnetic particle indications, which makes them more visible to the inspector. This is particularly useful in situations where the background colour of the test piece is similar in colour to the magnetic particles being used, which can make it difficult to see the magnetic particle indications.

GHS Category

Bulk Aerosol


FAQs

White contrast paint is a type of paint used in Magnetic Particle Inspection (MPI) to create a visible contrast between the surface being inspected and any potential cracks or defects. The paint is usually white in colour and applied in a thin layer over the surface being inspected.

White contrast paint works by creating a background colour that is different from the colour of the magnetic particles used in MPI. When a magnetic field is applied to the surface being inspected, any cracks or defects in the material will cause the magnetic particles to collect in those areas, forming a visible indication against the white background.

The advantages of using white contrast paint in MPI include improved visibility of any potential cracks or defects, particularly in materials with a dark surface. The contrast paint also helps to enhance the sensitivity of the inspection, making it easier to detect smaller defects. It offers an optimum layer thickness ensuring better sensitivity using the magnetic particle suspensions.

Some potential disadvantages of using general white contrast paint include the need for additional preparation time to apply the paint, and the potential for the paint to obscure small defects or make it more difficult to distinguish between cracks and surface irregularities. Also, the thickness of the paint varies that hampers the sensitivity of the magnetic suspension.

MR Chemie has a variety of paint depending on the ease of removability, application, solvent versions and country.

White Contrast Paint can easily be removed using our paint remover MR® 71 or MR®79

A single coat of MR72 offers a layer thickness of 6-8 microns.
